| A special tune for troutists. |
| CARDIFF CI4+ |
Equipped with a rigid support drag that enables
stable line delivery, an area drag that allows
fine adjustment, a drag sound that produces
a loud drag sound, and a drag system that
focuses on trout fishing. The 1000S is an
all-rounder in the area, and the 1000SHG
improves winding sensitivity in the area,
enabling retrieval that can withstand fast
currents in natural rivers. The C3000MHG
is targeted at the mainstream big trout.
The C3000MHG is equipped with an
advanced waterproof structure "X Protect".
Both models have achieved quick start-up,
light rotation, and high sensitivity with the
"NEW Magnum Light Rotor".
* X Protect: Adopted for C3000MHG
* Core protection: Adopted
for 1000S and 1000S HG
* CI4 +: Body material & rotor material |
| Technical characteristics |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
| Feature |
 |
 |
 |
 |
X Protect (C3000MHG)
A tough waterproof
structure with water
repellent treatment
and labyrinth
structure improves
the waterproof effect
without increasing
rotational resistance.
In addition,
a non-contact
type seal is used to
maintain the waterproof
effect. Due to its light
rotation, it can be used
in the line roller section,
and the durability of
the line roller bearing
has been greatly
improved in addition
to the body section.
It is used for
the C3000MHG, which
is designed for wading
in the main basin. |
Core protect
(1000S, 1000SHG)
A special
water-repellent
treatment that repels
water by polka dots
on each part and a
special grease sealing
treatment block the
intrusion of water and
foreign matter
while maintaining
lightness and response.
In addition, by flattening
the mating surfaces
of the body, adding
water repellent
treatment, and
eliminating the stopper
lever, water
intrusion from the
front, side, and back
of the body is
suppressed. Maintains
the initial performance
of rotation for a long
period of time.
|
Core protect
(1000S, 1000SHG)
|
Area drag
Compared to normal
drag, all items are
equipped with
"Area Drag" that
allows more severe
drag settings within
the range of practical
drag force. It is a
function that delivers
to anglers who want
to enjoy breathtaking
offense and defense
with precise drag
adjustment in all trout
fishing scenes, not
limited to areas.
|
|
|
|
|
 |
 |
 |
 |
HAGANE GEAR
HAGANE gear that is
forged to micron
accuracy at once by
compressing metal
lumps. Precise cold
forging technology
that does not scrape
the surface and
does not damage
the internal metal
structure realizes
amazing durability
and winding comfort.
It enables light and
powerfulhoisting
that does not even
deal with big fish.
|
NEW Magnum Light Rotor
The asymmetrical
rotor structure
realizes a different
dimension of lightness
of rotation.
The "bale return
mechanism" that
was previously
assembled on the
line roller side is
attached and
transplanted to the
cam side. Furthermore,
by making full use
of the weight
reduction of the
line roller, the
titaniumization
of the bale, and the
optimum arrangement
of the rotor wall
thickness, we
succeeded in
significantly reducing
the inertia. At the same
time, the rotor rigidity
on the line roller side,
which contributes
to drag performance,
has also been improved. |
G free body
Succeeded in bringing
the center of gravity
of the entire reel closer
to hand by arranging
sliding functional parts
for moving the spool
back and forth on the
upper part of the reel
body. This improves the
sense of unity with
the rod, reduces fatigue
caused by casting, and
improves rod operability. |
Rigid support drag
By structurally
strengthening the
spool support by the
main shaft, play and
fluttering of the
spool during drag
operation are
suppressed. Even if
the discharge point
of the line moves
to the front or rear,
it enables stable
line delivery
comparable
to that of a
dual-axis reel. |
|
|
|
|
 |
 |
|
|
Drag sound
It is equipped
with a new drag
sound that is
extremely large
and has a nice
feeling. In the area,
it creates
a spectacular
fight scene, and
even in the valleys
of continuous
waterfalls and the
rough waters of
the main stream,
it makes an
exciting tone. |
Cork knob
"Cork knob" that has
both a comfortable
texture and winding
sensitivity. You can
also enjoy coordination
with the Cardiff rod
series, which has
many cork grips. |
|
|
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity
Nylon Line (lb-m)
Fluorocarbon Line(lb-m)
PE Line(PE-m) |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| BB |
roller |

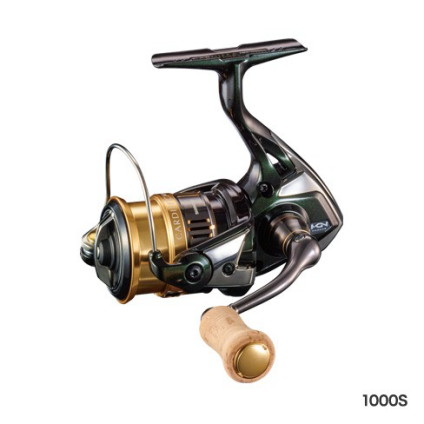

| 1000S |
5.0 |
66 |
170 |
3.0 |
2.5lb-140m 3lb-100m
4lb-90m
2lb-170m 3lb-95m
4lb-75m
PE 0.6-140m PE 0.8-100m
PE 1-70m |
9/1 |
36,200 |
JPY28,670 |
03933 |
 |
| 1000SHG |
6.0 |
79 |
170 |
3.0 |
2.5lb-140m 3lb-100m
4lb-90m
2lb-170m 3lb-95m
4lb-75m
PE 0.6-140m PE 0.8-100m
PE 1-70m |
9/1 |
36,200 |
JPY28,670 |
03934 |
|
| C3000MHG |
6.0 |
88 |
200 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE 1-220m PE 1.2-150m
PE 1.5-135m |
9/1 |
37,500 |
JPY29,700 |
03935 |
|
* HG = high gear specification, S = shallow pool specification,
M = medium deep spool specification, C = compact body.
* There is no stopper switching mechanism. |
|
|
|
